Neighbour vehicles

The neighbour_vehicles() method finds the preceding and following vehicles of a given vehicle on a lane. It is used throughout the library — notably by IDMVehicle for MOBIL lane-change decisions. Its accuracy directly affects simulation behaviour in multi-segment environments.

Problem

Before version 1.12, neighbour_vehicles() only searched the current lane segment. Vehicles that are not in the current segment were treated as invisible, even when they were directly ahead of or behind the ego vehicle in the driving direction.

This caused incorrect behaviour near segment boundaries in environments built from several connected lanes, such as merge, exit, roundabout, racetrack, intersection, and u-turn maps. See issue #626.

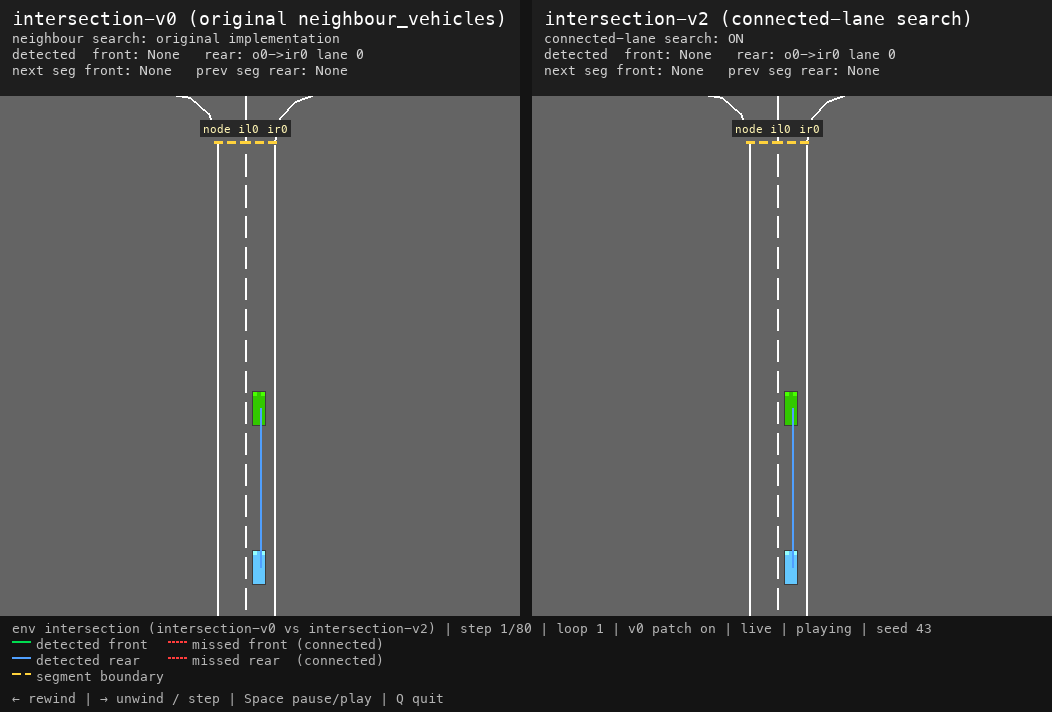

Side-by-side comparison of intersection-v0 (left) and intersection-v2 (right).

The fix

When neighbour_vehicles_connected_lanes is enabled, the search extends to downstream and upstream connected lane segments via the road-network graph.

The behaviour is controlled by:

• the neighbour_vehicles_connected_lanes flag on Road, and

• the matching neighbour_vehicles_connected_lanes entry in the environment config (see default_config()).

Reproducibility and environment versions

To preserve reproducibility, existing *-v0 environment IDs keep the original same-segment neighbour search by default (neighbour_vehicles_connected_lanes=False).

New registered versions enable connected-lane search by default through ConnectedLaneNeighboursMixin. For any environment, the new behaviour can also be enabled explicitly (albeit not recommended):

env = gym.make("merge-v0", config={..., "neighbour_vehicles_connected_lanes": True})

Version mapping

Environment	Initial (legacy search)	Connected-lane search
exit	exit-v0	exit-v1
merge	merge-v0	merge-v1
roundabout	roundabout-v0, roundabout-generic-v0	roundabout-v1, roundabout-generic-v1
racetrack	racetrack-v0, racetrack-large-v0, racetrack-oval-v0	racetrack-v1, racetrack-large-v1, racetrack-oval-v1
u-turn	u-turn-v0	u-turn-v1
intersection	intersection-v0, intersection-multi-agent-v0	intersection-v2, intersection-multi-agent-v2

Note

intersection-v1 and intersection-multi-agent-v1 are unrelated to this change: they provide a continuous-action variant and a multi-agent wrapper respectively, not connected-lane neighbour search.

Demonstration

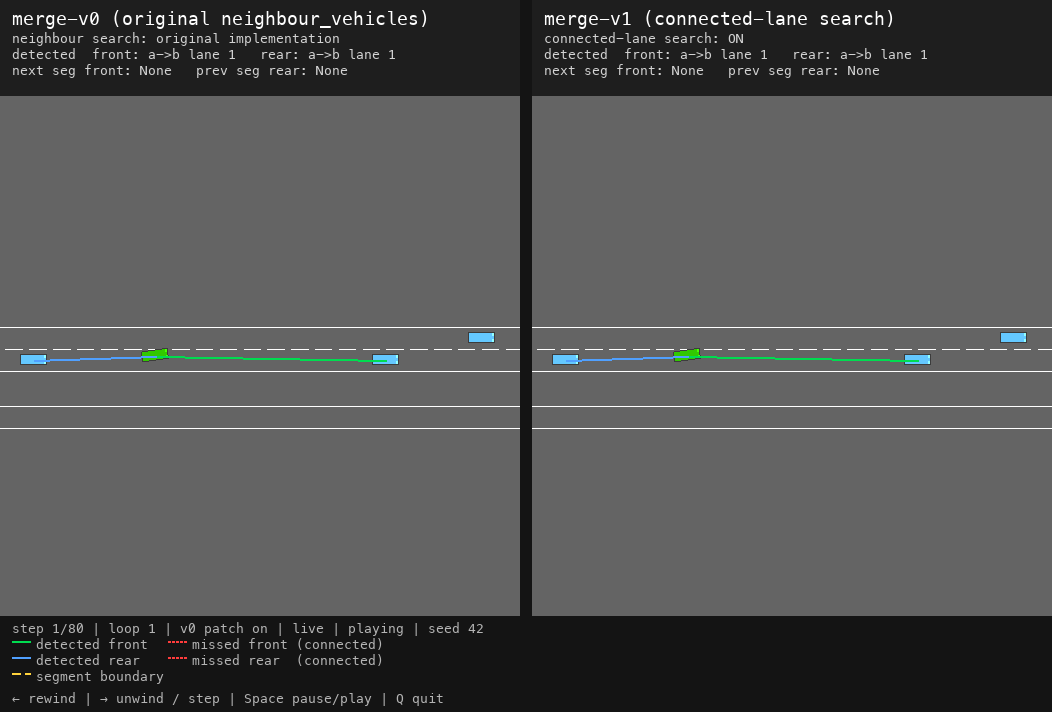

The animation below compares merge-v0 (left, original same-segment search) with merge-v1 (right, connected-lane search) running the same seed and actions side by side. When the ego vehicle passes a segment boundary, merge-v1 can detect a rear vehicle that is in the previous segment, while merge-v0 cannot. Also notice that vehicle behaviour is different even with the same seed.

Side-by-side comparison of merge-v0 (left) and merge-v1 (right).

Overlay legend

Overlay	Meaning
Green line	Front neighbour returned by neighbour_vehicles()
Red line	Vehicle that was not detected pre-1.12
Blue line	Rear neighbour returned by neighbour_vehicles()
Yellow line	Lane segment boundary (road-network node)

Visual comparison

A pygame program has been created to demonstrate the difference:

scripts/compare_neighbour_detection.py

python scripts/compare_neighbour_detection.py
python scripts/compare_neighbour_detection.py --env merge
python scripts/compare_neighbour_detection.py --env intersection
python scripts/compare_neighbour_detection.py --env racetrack-large --no-patch
python scripts/compare_neighbour_detection.py --validate
python scripts/compare_neighbour_detection.py --fixed-seed --steps 80

Flag	Description
--env	Environment to compare (default: merge)
--no-patch	Do not patch the left panel with the pre-1.12 implementation
--validate	Compare current legacy env against patched legacy env with pre-1.12 code
--fixed-seed	Keep the same seed across loops
--steps	Number of simulation steps per loop before resetting (default: 80)

Keyboard controls: ← rewind, → unwind / step forward, Space pause / play, Q quit.
